Orafol Double Sided Tapes
Technibond are the only UK Premier Converter of the Orafol range of double-sided tapes.
Orafol are one of Europe's largest and most respected manufacturers of adhesive tapes, graphic materials and reflective materials including the Reflexite brand.
We supply Orafol Tapes in rolls, spools, pads and diecut shapes.
Technibond have been associated with Orafol for many years, and we are the largest stockist of Orafol products in the UK with unrivalled conversion facilities. Orafol already manufacture for us many of our own-brand tapes. As a result of our close partnership we are now pleased to offer Orafol brand products alongside our own range of Technibond brand products.
GET IN TOUCH
To speak to a technical expert complete this form below and we will call you. Alternatively call us directly on
+44 1628 642839
About Orafol
Orafol has historic roots and long experience as a tape coating company. The company itself, however, is new. It has the advantage over many other long established companies, of operating from a large greenfield site. The factory itself and all the plant and equipment is very modern, as is the management ethos.
Orafol's quality is second to none, and production is highly efficient. As a result they have expanded from a single factory in 1995 to the current impressive size. They are now one of the largest tape coating companies in Europe.
Orafol Products
A large range of adhesives are available but they fall into a few groups. Solvent based pure acrylic adhesives (PA) give the highest performance but with some limitations. Solvent based modified acrylic adhesives (MA) give high to very high performance and are extremely versatile. Dispersion or water based acrylics (DA) are more economical but with generally lower performance. Synthetic rubber adhesives (SR) give medium to high performance under limited conditions:
Transfer Tapes - Orafilm
Transfer tapes are an unsupported adhesive film coated on release paper. Because of this they are very flexible - which may be an advantage or a disadvantage. Transfer tapes will preserve the flexibility of a material rather than reinforce it, but they are more difficult to handle. Sometimes a tissue or filmic tape will be a better option.
| ORAFILM 1325 | 60µ | MA | Low energy surfaces |
| ORAFILM 1327 | 90µ | MA | Low energy and rough surfaces |
| ORAFILM 1368 | 50µ | MA | Particularly for diecutting |
| ORAFILM 1369 | 70µ | MA | Particularly for diecutting |
| ORAFILM 1370 | 80µ | MA | Particularly for diecutting |
| ORAFILM 1373 | 100µ | PA | Most surfaces |
| ORAFILM 1374 | 50µ | PA | Smooth polar surfaces |
| ORAFILM 1375 | 60µ | PA | Alternative to 3M 467MP |
| ORAFILM 1377 | 120µ | PA | Alternative to 3M 468MP |
Thin Double Sided Tapes - Orabond

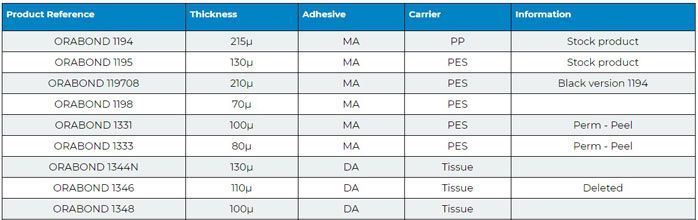

Carrier tapes are true double-sided tapes: adhesive coated on both sides of a carrier. The carrier provides reinforcement making these tapes easier to handle. Typical carriers are tissue, films and woven materials. Tissue is quite flexible, films are reinforcing, woven materials reinforce in one or two directions only. The films include polypropylene (PP), an economical transparent film, Polyester (PES) for higher temperature performance and PVC where a white film is required. Various adhesives are available, from low performance economy adhesives to the highest performance for demanding applications. The large range includes the following:
| ORABOND 1194 | 215µ | MA | PP | Stock product |
| ORABOND 1195 | 130µ | MA | PES | Stock product |
| ORABOND 119708 | 210µ | MA | PES | Black version 1194 |
| ORABOND 1198 | 70µ | MA | PES | |
| ORABOND 1331 | 100µ | MA | PES | Perm - Peel |
| ORABOND 1333 | 80µ | MA | PES | Perm - Peel |
| ORABOND 1344N | 130µ | DA | Tissue | |
| ORABOND 1346 | 110µ | DA | Tissue | Deleted |
| ORABOND 1348 | 100µ | DA | Tissue | |
| ORABOND 1349 | 160µ | DA | Tissue | Also consider 1358 |
| ORABOND 1349GI | 100µ | DA | Scrim | Deleted |
| ORABOND 1350GI | 230µ | DA | Scrim | |
| ORABOND 1354L | 110µ | MA | Tissue | |
| ORABOND 1354N | 180µ | DA | Tissue | |
| ORABOND 1358 | 155µ | DA | Tissue | |
| ORABOND 1359 | 160µ | DA | Tissue | Also consider 1358 |
| ORABOND 1367 | 150µ | DA | Tissue | |
| ORABOND 1386 | 130µ | MA | Nonwoven | Version of 1396 |
| ORABOND 1387 | 110µ | PA | PES | |
| ORABOND 1389 | 70µ | PA | PES | |
| ORABOND 1392 | 260µ | MA | uPVC | In stock |
| ORABOND 1393 | 270µ | MA | PVC | In stock |
| ORABOND 1395 | 130µ | MA | PES | In stock |
| ORABOND 1396 | 130µ | MA | Tissue | In stock |
| ORABOND 1397TR | 210µ | MA | PES | Promotion - Details |
| ORABOND 1397PP | 210µ | MA | PES | Promotion - Details |
| ORABOND 1398 | 70µ | MA | PES | |
| ORABOND 1399TM | 190µ | MA | Tissue | Promotion - Details |
| ORABOND 1453 | 140µ | SR | PP | |
| ORABOND 1453LT | 100µ | SR | PP | |
| ORABOND 1455 | 130µ | SR | Tissue | |
| ORABOND 1456 | 160µ | SR | Tissue | |
| ORABOND 1459 | 140µ | SR | Tissue | |
| ORABOND 1469 | 90µ | SR | Tissue | |
| ORABOND 1473 | 110µ | SR | Tissue | |
| ORABOND 1486 | 160µ | SR | Tissue | |
| ORABOND 1486LT | 130µ | SR | Tissue | |
| ORAFLEX 1489 | 250µ | SR | Scrim | In stock |
| ORABOND 3331TG | 230µ | MA | PVC | Promotion - Details |
Samples of most of these products are held in stock.
Foam Double Sided Tapes - Oramount
Foam tapes are used for bonding two rigid materials together, providing gap-filling to ensure full adhesive contact to both surfaces. Typically these tapes use high performance adhesives. Double Sided Foam tapes are a Technibond speciality, so in some cases we stock alternative, non-standard products. We also carry some additional thicknesses and colours. We apply our own film liners, so we can offer a range of release papers and films on any of the products.

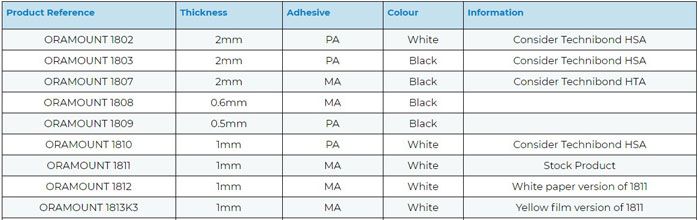

The Orafol range includes:
| ORAMOUNT 1802 | 2mm | PA | White | Consider Technibond HSA |
| ORAMOUNT 1803 | 2mm | PA | Black | Consider Technibond HSA |
| ORAMOUNT 1807 | 2mm | MA | Black | Consider Technibond HTA |
| ORAMOUNT 1808 | 0.6mm | MA | Black | |
| ORAMOUNT 1809 | 0.5mm | PA | Black | |
| ORAMOUNT 1810 | 1mm | PA | White | Consider Technibond HSA |
| ORAMOUNT 1811 | 1mm | MA | White | Stock Product |
| ORAMOUNT 1812 | 1mm | MA | White | White paper version of 1811 |
| ORAMOUNT 1813K3 | 1mm | MA | White | Yellow film version of 1811 |
| ORAMOUNT 1815 | 1.5mm | PA | White | |
| ORAMOUNT 1816 | 1.5mm | MA | White | |
| ORAMOUNT 1818 | 3mm | MA | White | Consider Technibond HTA |
| ORAMOUNT 1819 | 2mm | MA | White | Consider Technibond HTA |
| ORAMOUNT 1820 | .8mm | PA | White | |
| ORAMOUNT 1821 | 1mm | PA | Black | Consider Technibond HSA |
| ORAMOUNT 1822 | 1mm | MA | Black | Stock Product |
| ORAMOUNT 1823 | .8mm | PA | Black | Consider Technibond HSA |
| ORAMOUNT 1824 | .8mm | PA | Black | Consider Technibond HSA |
| ORAMOUNT 1825 | .5mm | PA | Black | |
| ORAMOUNT 1826 | .8mm | PA | White | Consider Technibond HSA |
| ORAMOUNT 1827W | 3.2mm | PA | Black | |
| ORAMOUNT 1828 | 3mm | MA | Black | Stock product |
| ORAMOUNT 1829 | .8mm | MA | Black | |
| ORAMOUNT 1831 | 1mm | SR | White | |
| ORAMOUNT 1836 | 1.5mm | SR | White | |
| ORAMOUNT 1840 | .8mm | SR | White | |
| ORAMOUNT 1850 | 1mm | MA/PA | Black | For lens grinding pads |
| ORAMOUNT 1852 | 1mm | MA | White | Perm / peel tape |
Orafol and Technibond Spools
Technibond now supplies the full range of Orafol thin tape spools.
Technibond manufactures its own foam tape spools, and we can also spool most of the above products in a wide range of widths, with a choice of release liners.
OTHER PRODUCTS TO CONSIDER
DOUBLE SIDED
THIN TAPES
TECHNIFLEX™ ACRYLIC TAPES
HANNO SEALING & INSULATING
TECHNISEAL™ FOAM SEALANTS
ORAFOL DOUBLE SIDED TAPES
ORALITE REFLECTIVE TAPES
FREE BUYERS GUIDE
DOWNLOAD
Fill in your details below and we will email you a free guide
FOR EXPERT ADVICE, FREE SAMPLES OR TO ORDER,
CALL TECHNIBOND ON +44 1628 642830
FOR EXPERT ADVICE, FREE SAMPLES OR TO ORDER,
CALL TECHNIBOND ON
+44 1628 642830
CUSTOMER REVIEWS
SWIPE TO SEE MORE TESTIMONIALS
FREQUENTLY ASKED QUESTIONS
We slit most of our products to order, so we have no standard roll width. If you want 13mm or 133mm, you can have it.
As a standard, the minimum is 6mm. We can slit most products narrower than this (we have slit down to 1.6mm) but we charge the same per roll as if it were 6mm, due to the increased slitting and packaging difficulty and the increased waste. The maximum width depends on the product, but is usually at least 1 metre.
We hold large quantities of bulk rolls in stock and manufacture to order. That's the only way we can offer the number of products and product variations that we do.
UK deliveries on rolls, 3 to 5 working days. Spools, pads and die-cuts are 10 working days. If your order is urgent, please speak to our sales department and we'll try to help. Export orders are subject to longer delivery times.
Our MOQ on most rolls is £100. On rolls of Techniflex and on other formats it is £200.
On UK orders over £200 delivery is free. On orders between £100 and £200 we add a small order charge of £20. We can arrange a.m. and courier deliveries for additional charges.
As our products are made to order, we cannot generally accept returns unless the goods are faulty.
We are proud to guarantee the quality and performance of all our products and will quickly provide a replacement or refund if they fail to meet our standards.
Yes, we export around the world. Currently we export to Europe, the Far East, Australia and the US.
